KX250 Frame Conversion Kit: 2006-2007 KX450F Chassis

Complete frame conversion kit to swap the 1993+ KX250 engine into the 2006-2007 Kawasaki KX450F chassis.

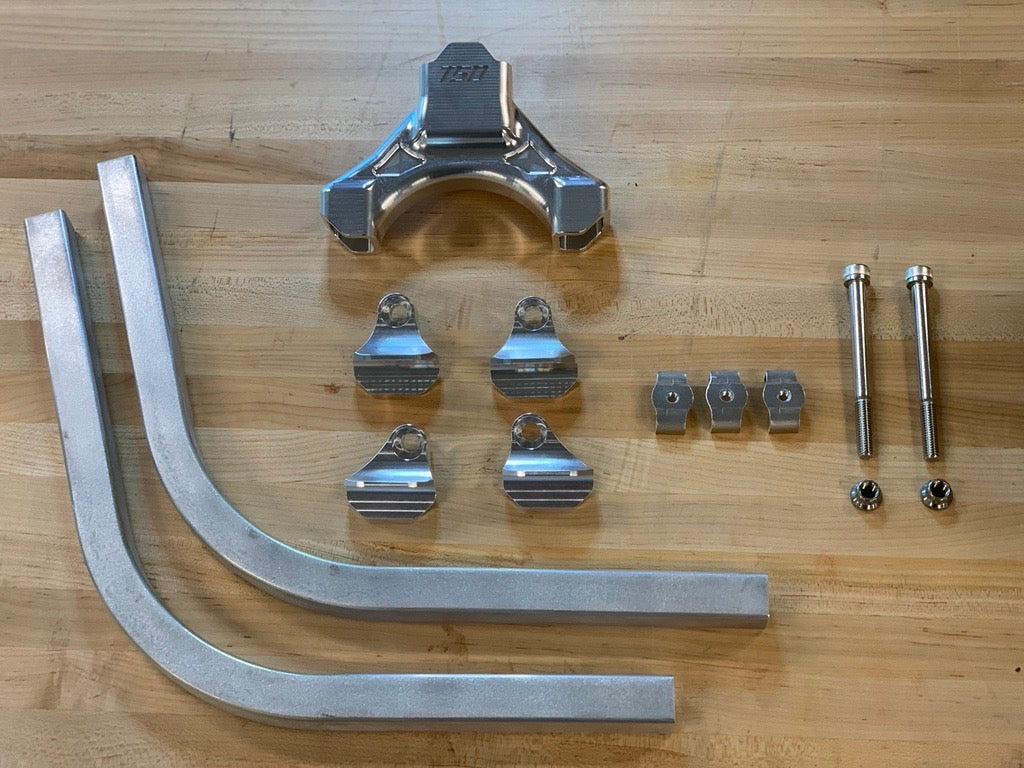

What's included?

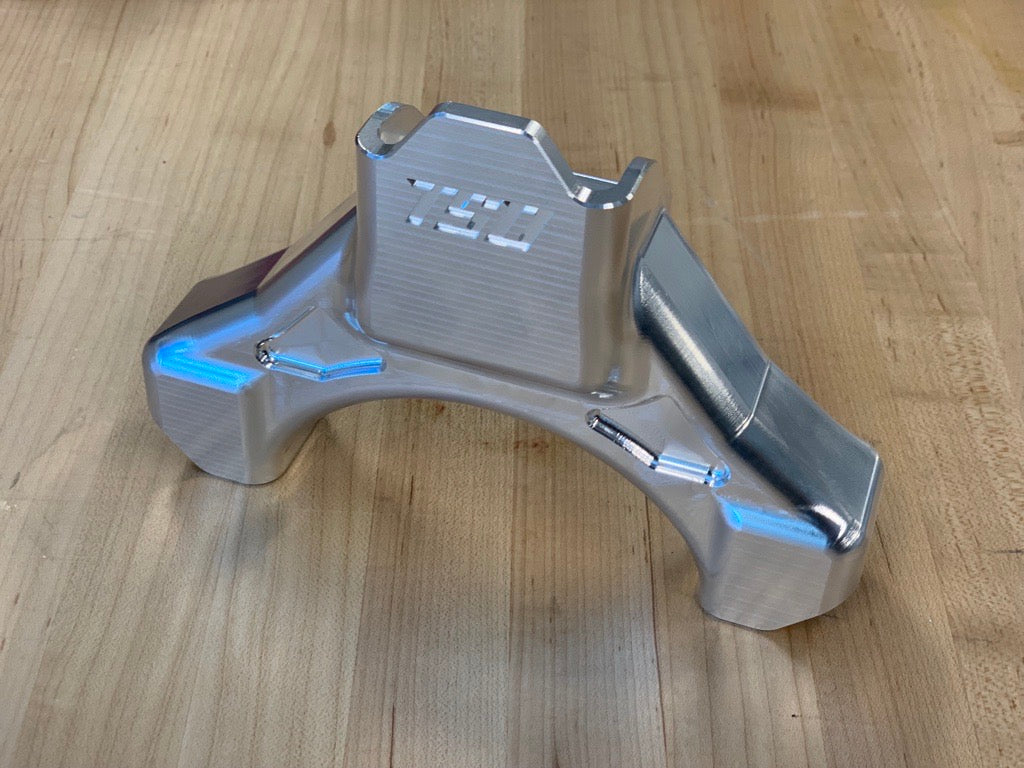

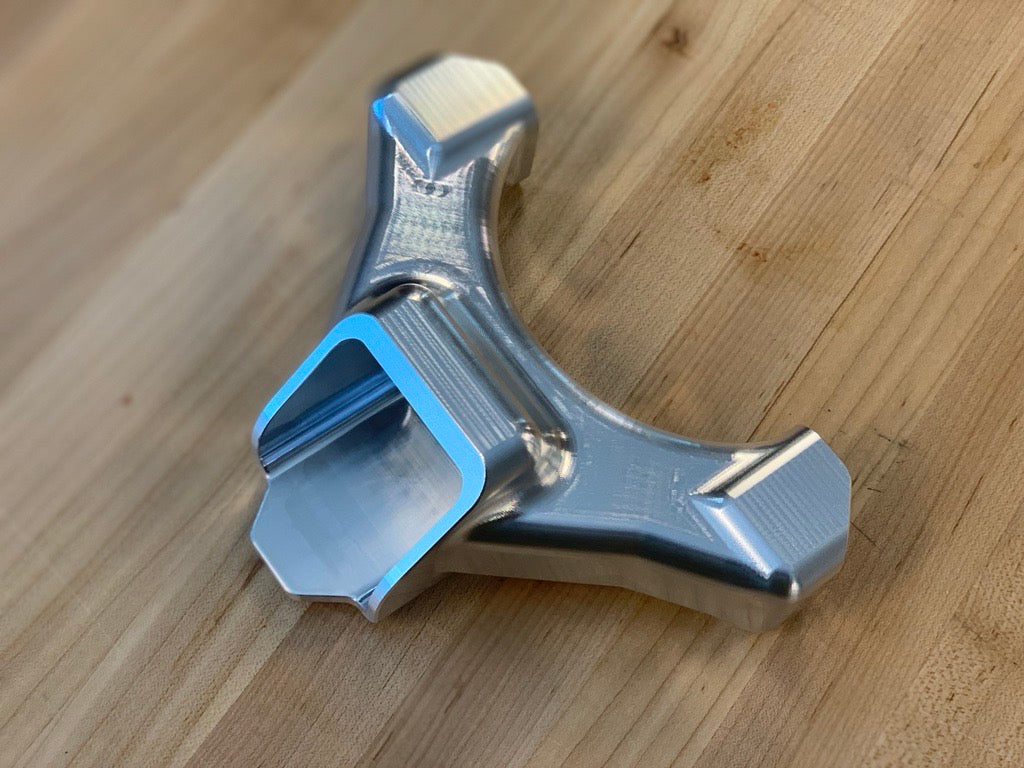

• Billet Y-Piece

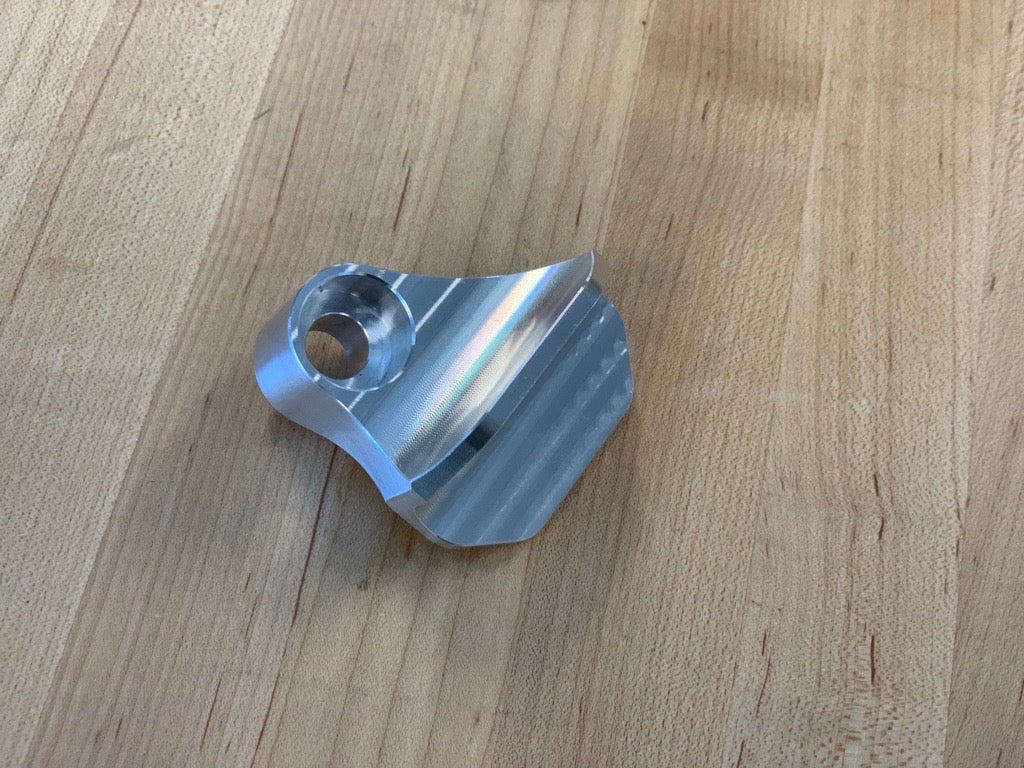

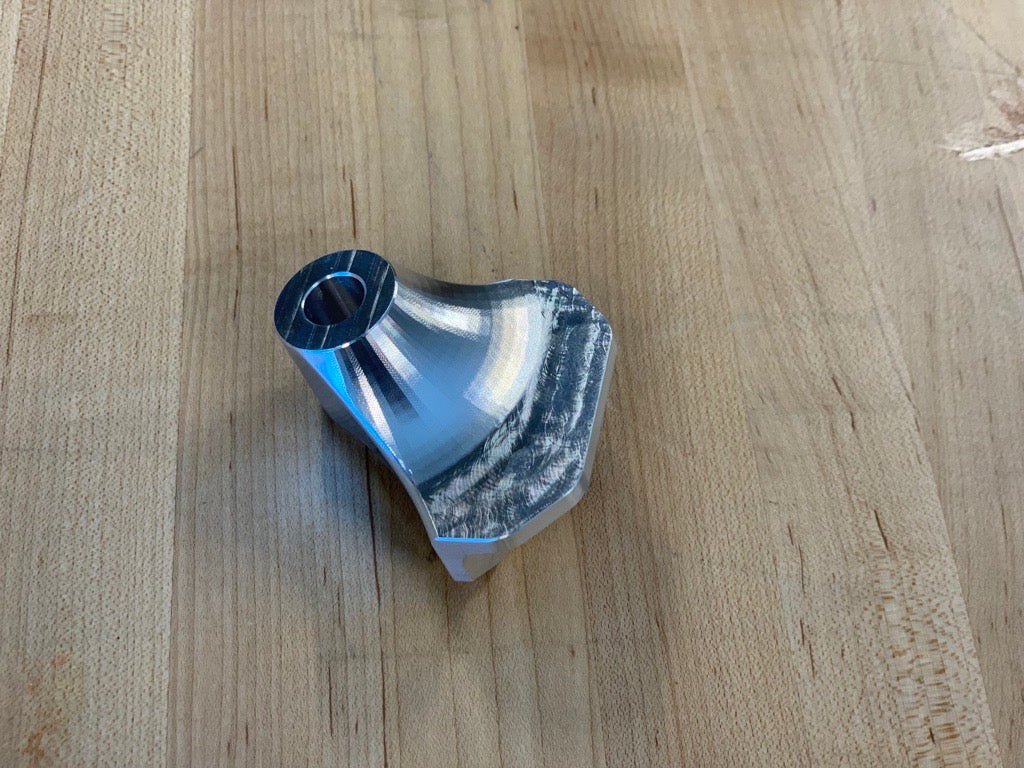

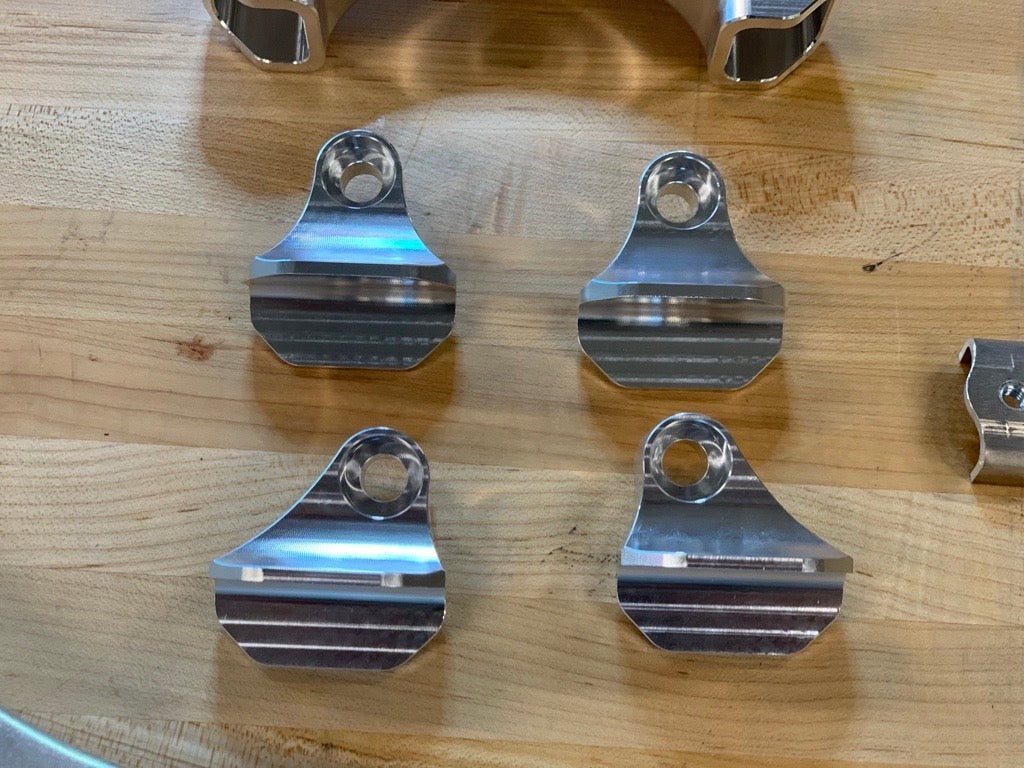

• Billet upper and lower motor mounts

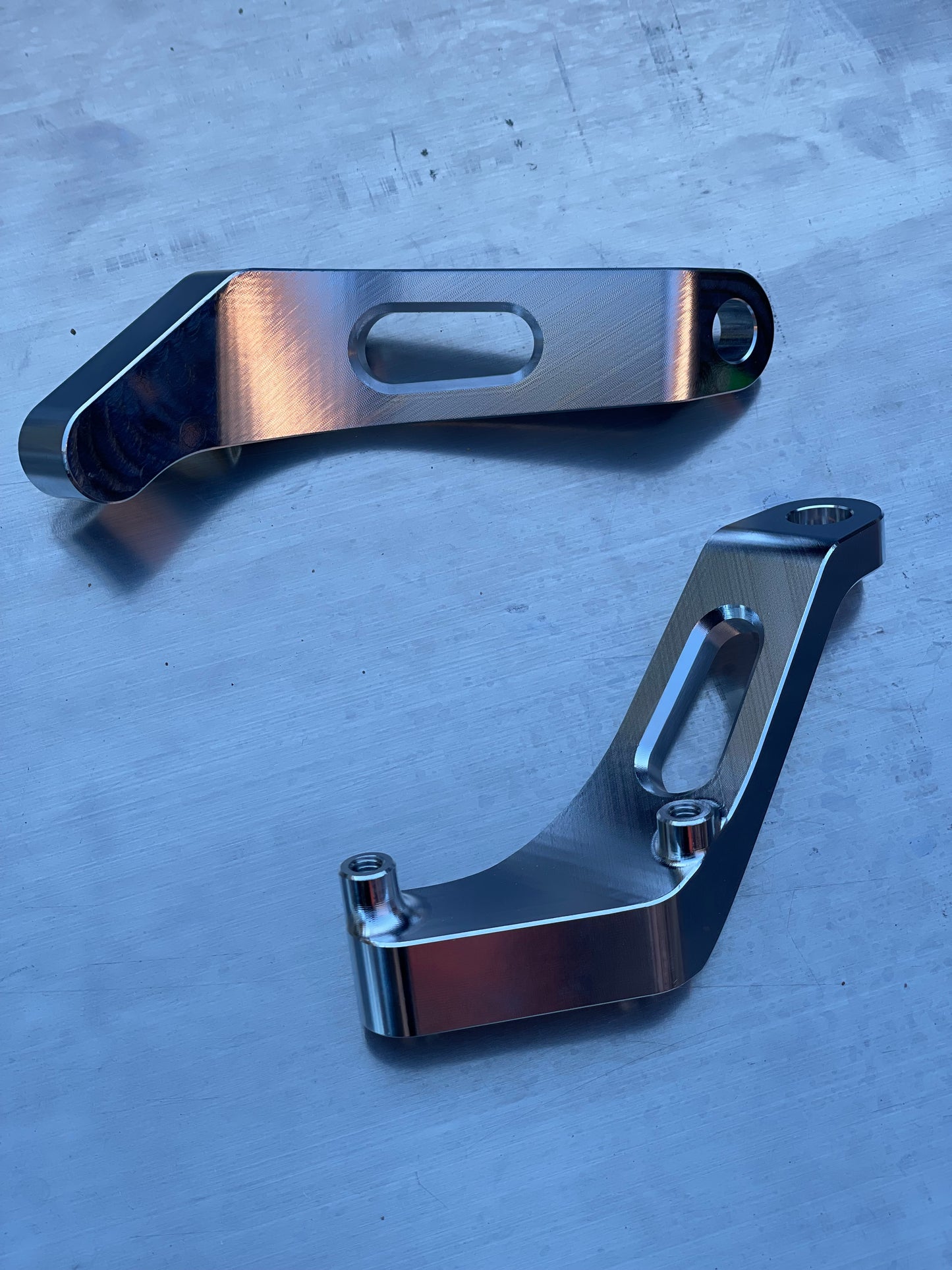

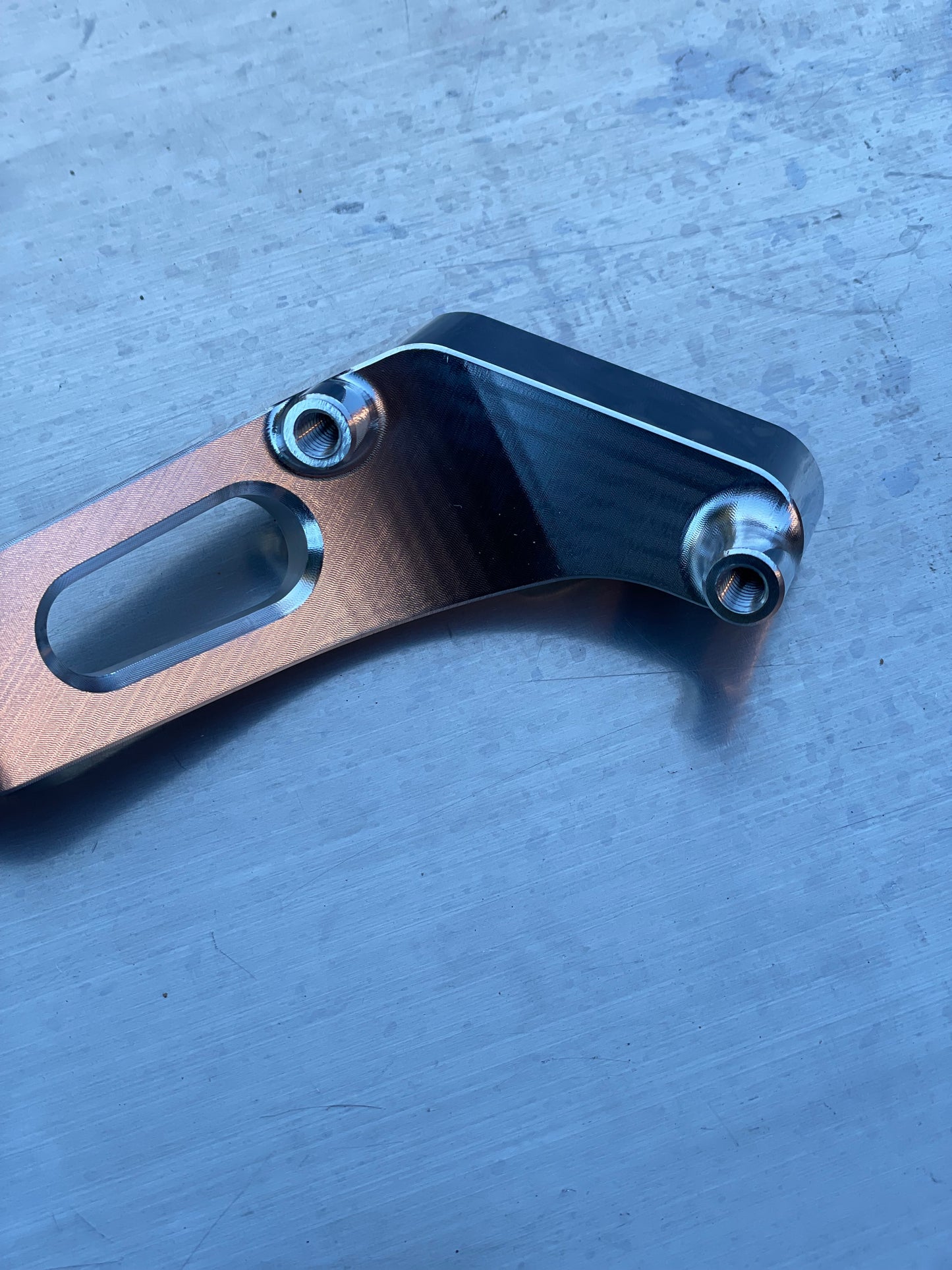

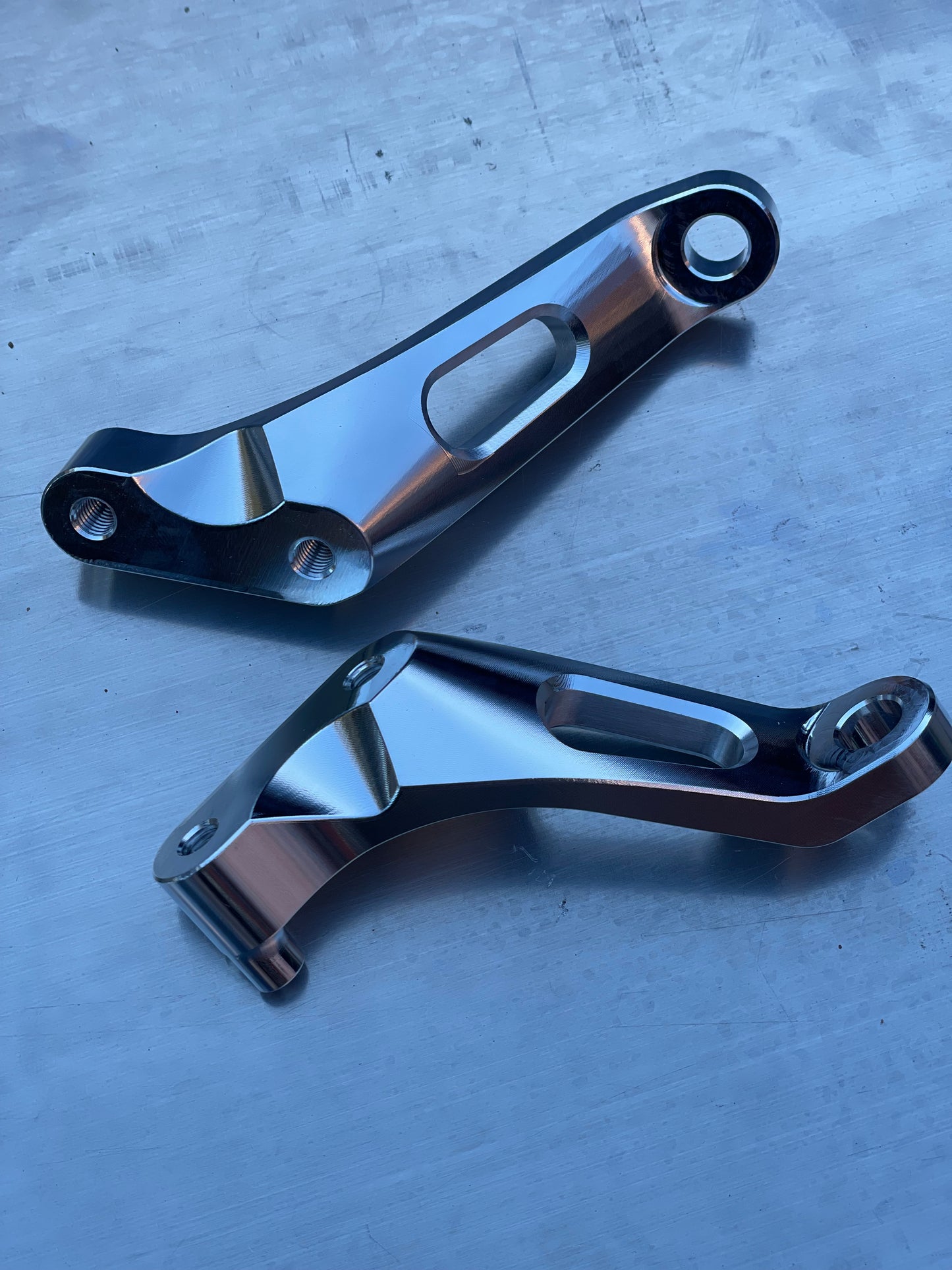

• Billet cylinder head stays (with ignition coil mounts)

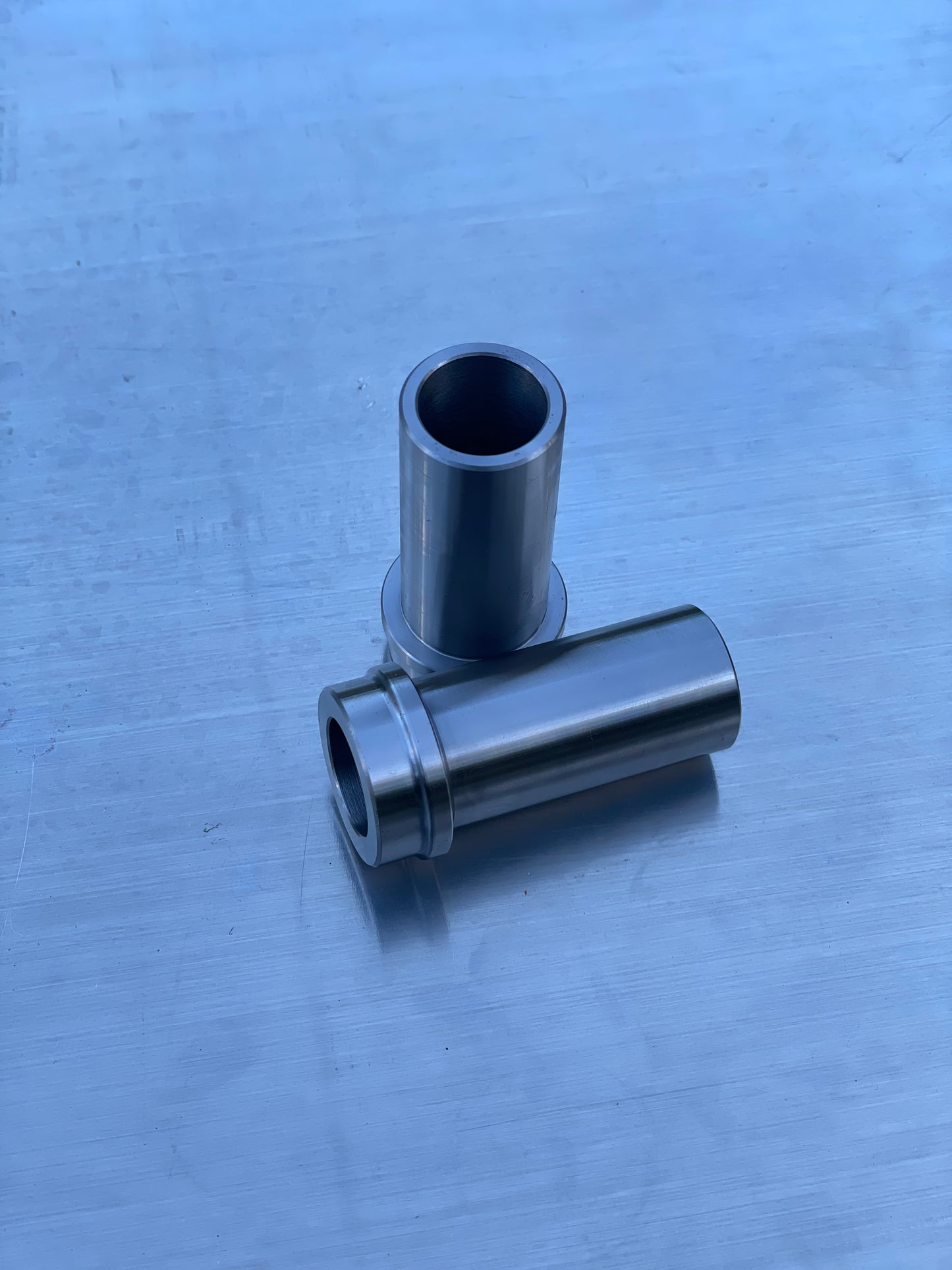

• Billet swing arm spacers (52100 bearing steel)
• Mandrel bent frame rails (6061 T6 Aluminum)
• Expansion chamber hanger mount
• Radiator mounts
• Motor mount bolt kit
• CDI Mount plate

NOTE:

If you are using this kit with the 1993-2002 KX250 engine, you will need to install the 2003 cylinder head. 2003-2007 engines will drop in as-is.
